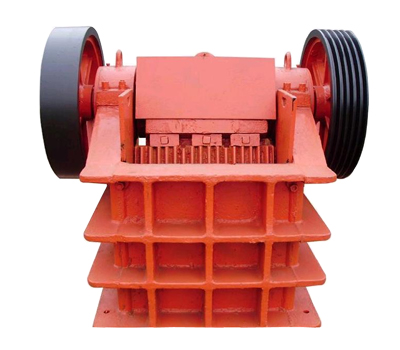

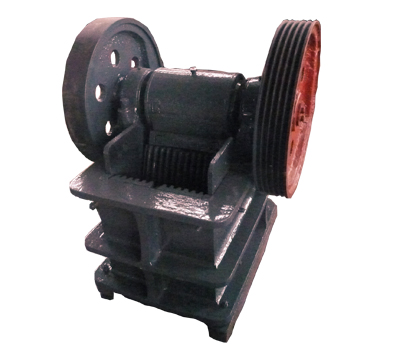

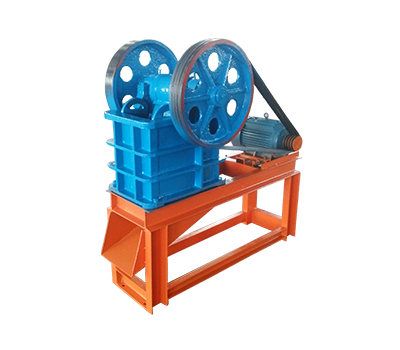

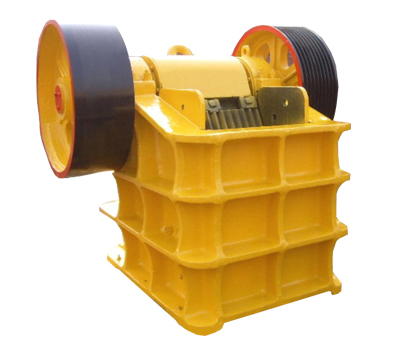

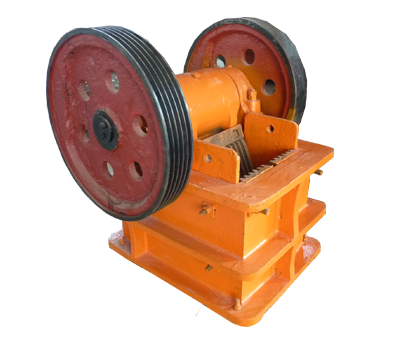

Jaw Crusher

firon1818

sabrina88196

中文

Product Show

<< Big reduction ratio

<< Even granularity

<< Simple structure

<< Reliable working condition

<< Convenient repair and economic operation

Description

Jaw crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa, it is widely used in the mining, metall-urgical industry, building material, highway, railyway, and chemical industry.

Working Principle

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of jaw crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves aways from fixed jaw by the pulling of rod and spring, the products after crushign will be discharged from the outlet of jaw crusher.

Structure

Technical Specification

Application
