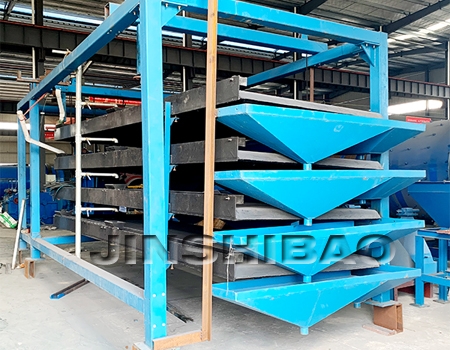

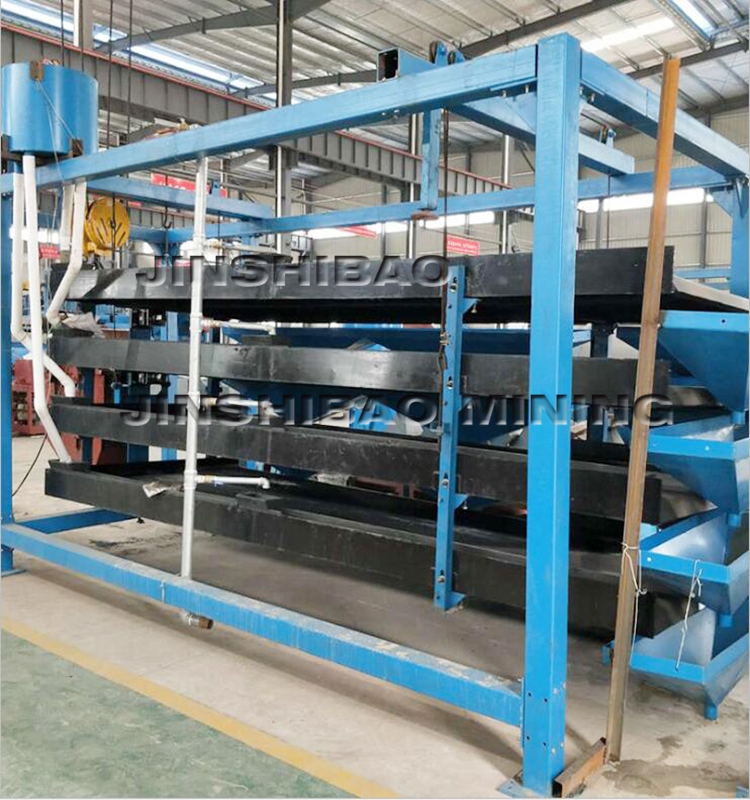

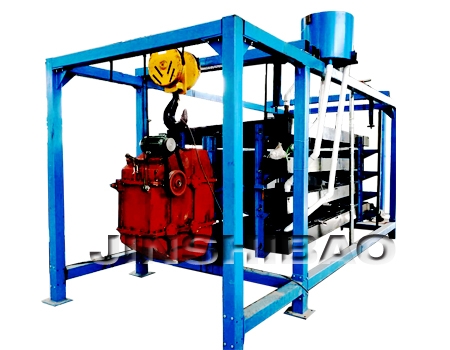

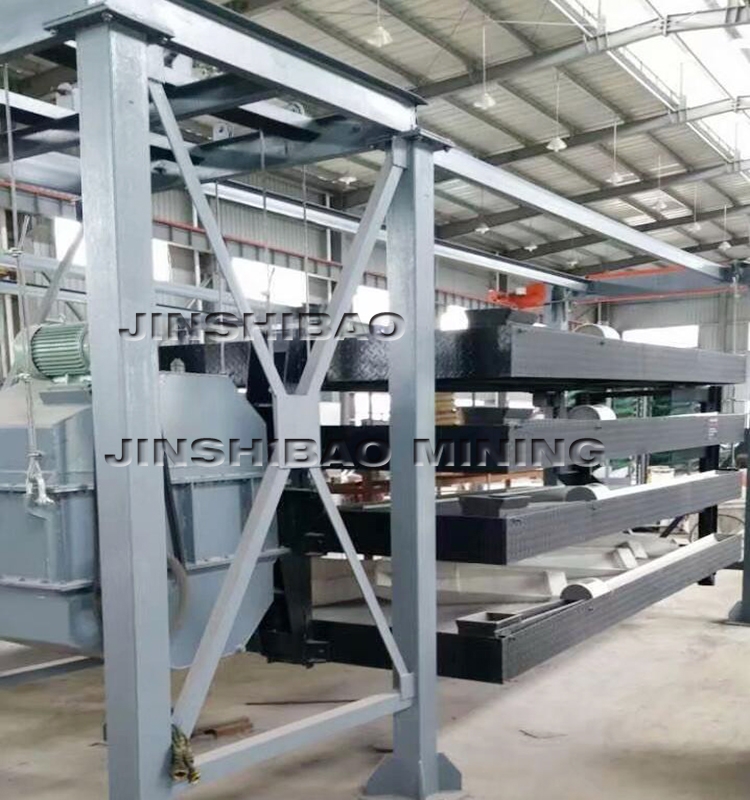

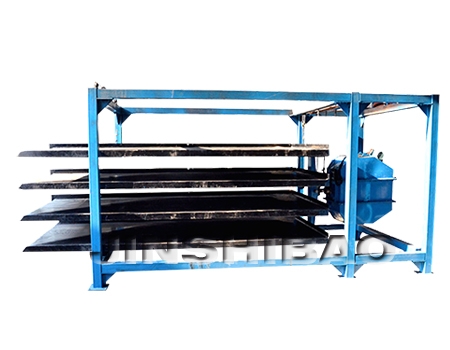

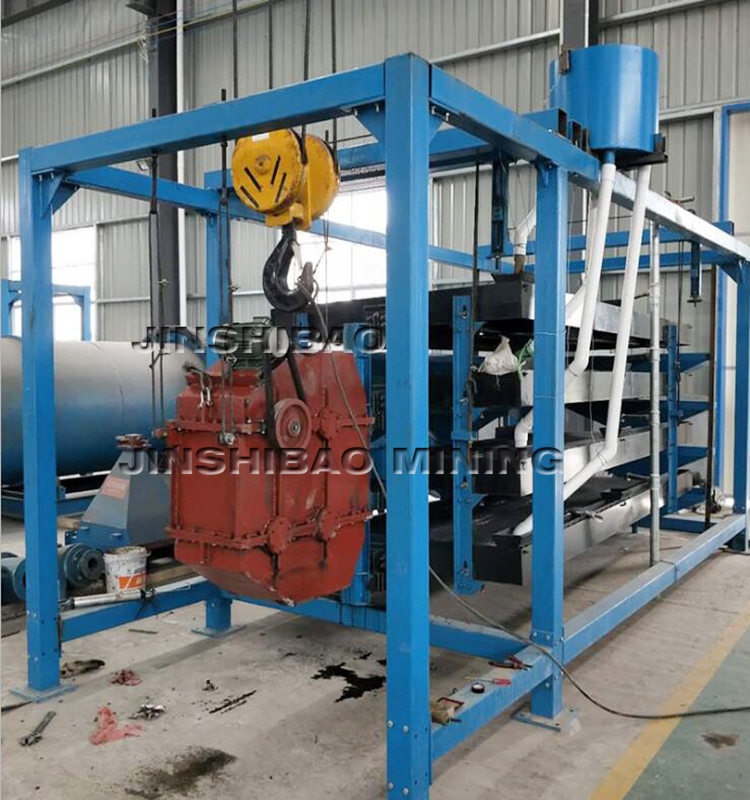

4-layers Shaking Table
4-layers Shaking Table
>> Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation.
>> It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life.
>> It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature.
>> It save lots of space when the site space is limited
Description
4-layers Shaking Table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.

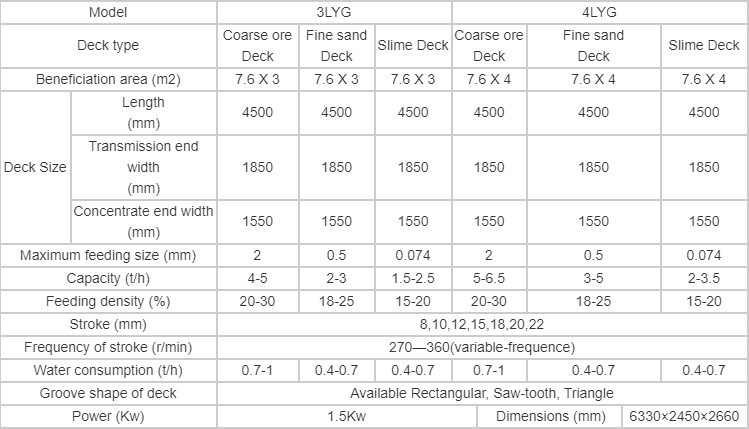

Technical Specification

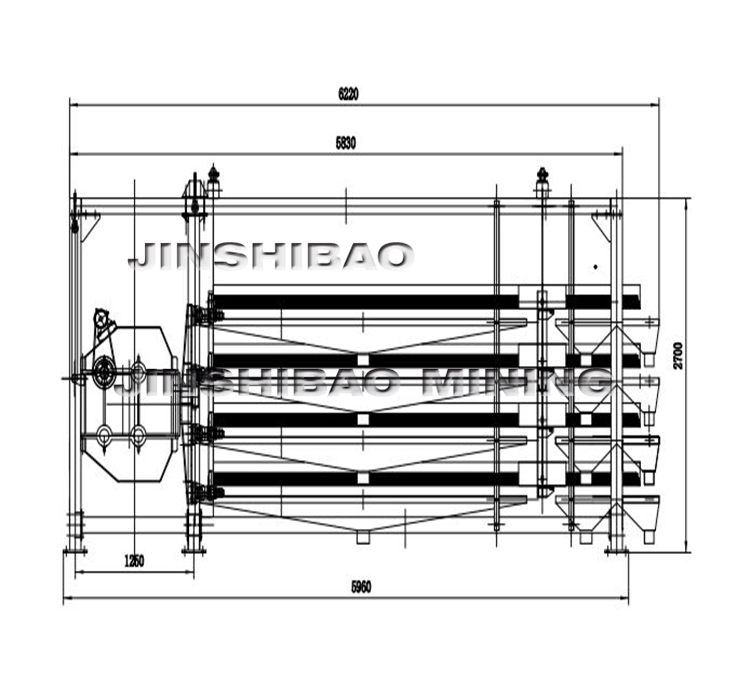

Dimension size
Application
