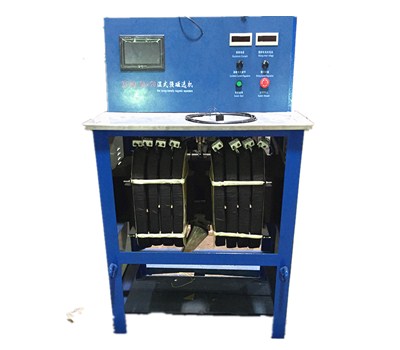

High-Intensity Magnetic Extractor
High-Intensity Magnetic Extractor
>> Large magnetic force area
>> Simple structure & Lower cost
>> Good processing capability
>> Good separation on manganese ore , wolframite ore
>> Power conservation
Description
High-intensity magnetic extractor is applicable in scientific research, teaching and comprehensive utilization and assessment of mineral resources and for separation of hematite. Iron content for the tested samples can be obtained merely with minor test samples. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
Working Princple
It can automatically reset at the initial stage under the control by PLC, i.e.feeding valve being in the close state and ore separating hopper in the position of tailings. The separation operation process is that ore slurry in mixing tank is directed through feeding valve and flat nozzle into separating tank ; non-magnetic minerals with the action of gravity drop into tailing tank along the gaps of gear rack; magnetic mineral particles with the action of magnetic field are absorbed on the gear racks; the ore separating hopper after feeding swings to the upper middlings tank; the middlings flush open solenoid valve ( flow rate can adjust the middling flushing gate valve);non-magnetic minerals particles entrained in the ore separating tank are flushed before the ore separating hopper swings to the upper concentrate tank and meanwhile de-energize magnetizing power supply; after magnetic fields of the separation tank disappear, the flushing solenoid valve opens and flushes the magnetic mineral particles absorbed on the gear rack into the concentrate tank ( flush volume to be controlled by the concentrate gate valve).After completion of one cycle of separation operation, PLC makes reset to the next cycle for achieving the objective of separation of magnetic from non-magnetic minerals.
Technical Specification
Model
Unit
XCSQ50×70
Size of separating tank
mm
50×70×220
Controllable Range of Magnetic Field Intensity
GS
0~23000(1840KA/m)
Excitation Power Supply
Input(single-phase A.C.)
220V,50HZ
Output(D.C.)
0~118V,1~ 25A
Coil Cooling Method
Forced air cooling
Max. Feed Size
mm
1
Capacity
kg/h
4~5
Overall Consumed Power
kw
≤4
Dimension
mm
840×550×1415
Weight
kg
795
Application
