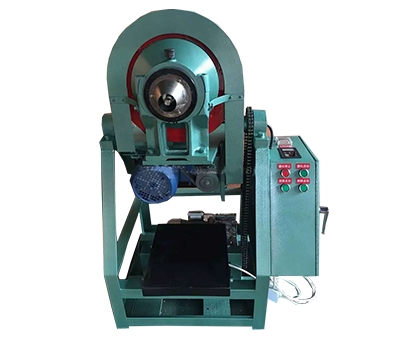

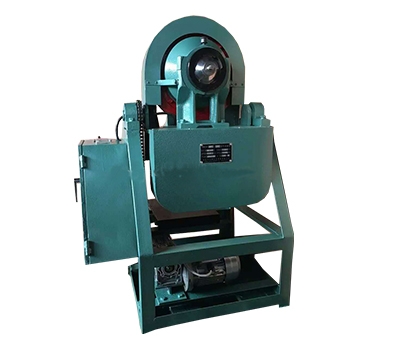

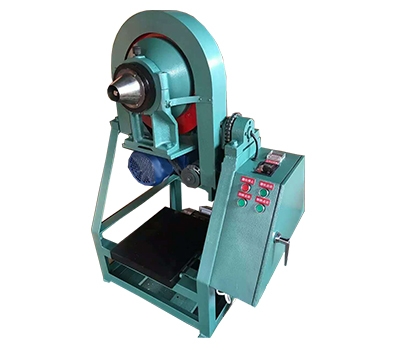

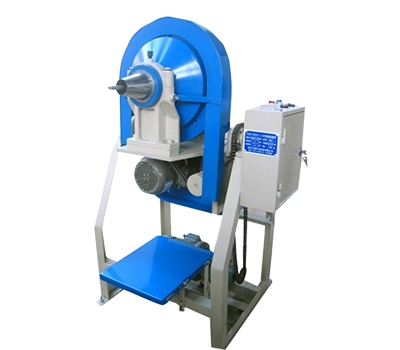

ZQM Intellgent Conical Ball Mill
ZQM Intellgent Conical Ball Mill
<< Convenient discharging, cleaning, operation, Strict structure
<< Good condition for maintenance, production
<< Improved the working quality in laboratory.
Description
ZQM Intellgent Conical Ball Mill is a new milling equipment. It is in the nature of high shell rotating speed, inner lining smoothly, high milling medium stowing ratio, many mediums, good grinding and polish effectiveness etc. Compared with the same kind of milling machine, it has stable operation, feeding and discharging controlled by motor, fast and convenient, the time of operating selected, well-distributed of the particle size, small over degree of grinding, high grinding efficiency, small power consumption of each unit of materials.
Technical Specification
| Model | ZQM160*60 | ZQM250*100 | ZQM360*160 |
|
Cell body size mm |
160*60 | 250*100 | 360*160 |
|
Grinding volume g |
300 | 100 | 4000 |
|
Feeding size mm |
-3 | -5 | -5 |
|
Output size mm |
-0.074 | -0.074 | -0.074 |
|
Motor power kw |
0.75 | 1.1 | 1.1 |
|
Dimension size mm |
920*550*1050 | 1055*650*1050 | 700*580*1080 |
|
Weight kg |
155 | 210 | 350 |
Application
ZQM Intellgent Conical Ball Mill is a laboratory milling equipment.It applied to the laboratory wet grinding (160*60 cone ball mill is applied to dry grinding) metallurgy, building materials, chemical industry, light industry, coal , water and electricity, agriculture and geology these laboratory Artificially placer, ore processing technology and other use of grinding the materials.
