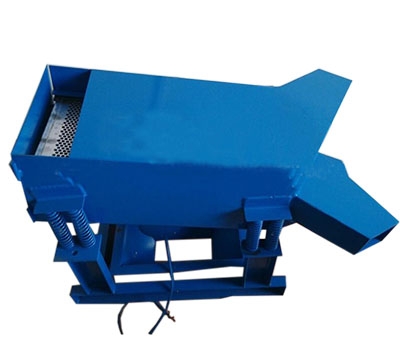

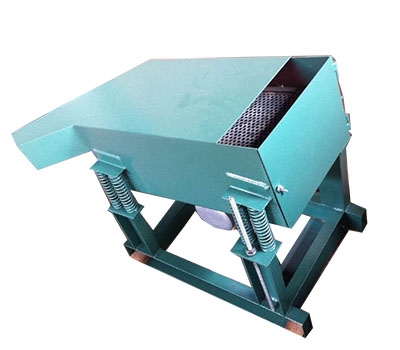

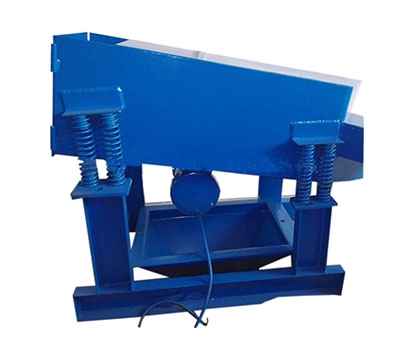

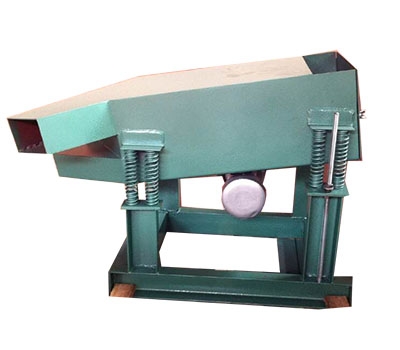

XSZ Single and Double Layer Vibrating Screen
XSZ Single and Double Layer Vibrating Screen
>> New design,advanced technology,large capacity
>> Higher screening rate
>> Easy operation & maintenance
>> Long working life,No blocking hole.
>> Low noise, stable vibrating
Description
Structure
XSZ single and double layer vibrating screen is mainly composed of body, base, feed hopper, supporting device, adjustable legs, supporting spring, inclination adjusting device, receiving drum, tension device, etc.
Working Principle
It uses vibration motor as vibration source, the materials is rosed and moved in the straight at the same time.
The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged from different gates.
Technical Specification
|
Items |
unit |
value |
|
|
Sieve layer |
layer |
2 |
|
|
Sieve size |
Length*width |
mm |
600*300 |
|
Area |
m2 |
0.18 |
|
|
Sieve hole size |
mm |
5*5, 8*8 |
|
|
Amplitude |
mm |
2 |
|
|
Inertial wheel frequency |
times/min |
1400 |
|
|
Screen Angle |
degree |
8-20 |
|
|
Feeding size |
mm |
0-35 |
|
|
MAX feeding size |
mm |
45 |
|
|
capacity (when screen size 5-8mm) |
T/h |
5 |
|
|
Electric Motor |
Model |
/ |
A02-7114TH |
|
Power |
kw |
0.55 |
|
|
Speed |
R/min |
1400 |
|
|
Dimension |
mm |
900*550*680 |
|
|
Machine weight |
kg |
60 |
|
