Sample Pulverizer
Sample Pulverizer
<< For test crushing and processing of hard materal and non-metallic ore and mineral raw materials
<< For geology, mine, metallurgy ,coal , chemical engineering , light industry ,building materials , scientific research , colleges and universities
<< Easy operation , light weight , and good performance
Description
The sample pulverizer that is working for trail plant , it is small capacity on crushing the material . The working system way is vibrating grinding type . The material will load into the bowl ,there is crushing ring and crushing hammer inside , in high speed rotation way the bowl will have vibrating and grinding function ,will crushed to 20-80 mesh sample size by crushing ring and crushing hammer in 2-6 mintues ,make it for testing directly .
Working principle
The material will load into the sealing bowl , inside with crushing ring and crushing hammer , the motor will bring the crushing hammer in the high speed rotation , to produce the vibration and friction force , thereby crushing the mesh size .
Technical Specification
|
Model |
Bowls No. |
Capacity /g |
Feed size /mm |
Output size /mm |
Crusher time /minute |
Power /kw |
Weight/kg |
|
GJ-100-1 |
1 |
100 |
13 |
0.074 |
2-3 |
1.1 |
160 |
|
GJ-100-2 |
2 |
200 |
13 |
0.074 |
2-3 |
1.1 |
170 |
|
GJ-100-3 |
3 |
300 |
13 |
0.074 |
2-3 |
1.5 |
180 |
|
GJ-100-4 |
4 |
400 |
13 |
0.074 |
2-3 |
1.5 |
200 |
|
GJ-100-5 |
5 |
500 |
13 |
0.074 |
2-3 |
1.5 |
200 |
|
GJ-100-7 |
7 |
700 |
13 |
0.074 |
2-3 |
1.5 |
200 |
|
GJ-200-1 |
1 |
200 |
20 |
0.074 |
3-5 |
1.5 |
160 |
|
GJ-200-2 |
2 |
400 |
20 |
0.074 |
3-5 |
1.5 |
170 |
|
GJ-200-3 |
3 |
600 |
20 |
0.074 |
3-5 |
1.5 |
180 |
|
GJ-200-4 |
4 |
800 |
20 |
0.074 |
3-5 |
1.5 |
200 |
|
GJ-400-1 |
1 |
400 |
26 |
0.074 |
3-5 |
1.5 |
200 |
|
GJ-400-2 |
2 |
800 |
26 |
0.074 |
3-5 |
1.5 |
210 |
|
GJ-400-3 |
3 |
1200 |
26 |
0.074 |
3-5 |
1.5 |
220 |
|
GJ-400-4 |
4 |
1600 |
26 |
0.074 |
3-5 |
1.5 |
230 |
|
GJ-500-1 |
1 |
500 |
30 |
0.074 |
3-5 |
1.5 |
260 |
|
GJ-1000-1 |
17 |
1000 |
30 |
0.074 |
3-5 |
1.5 |
300 |
Model Pictures

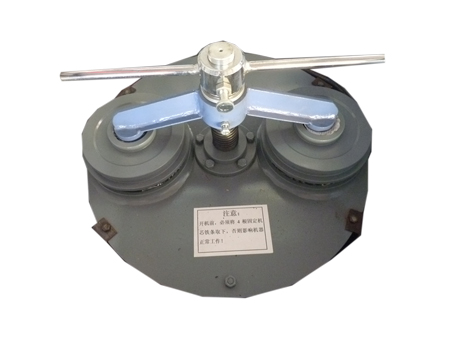

Four different bowls picture

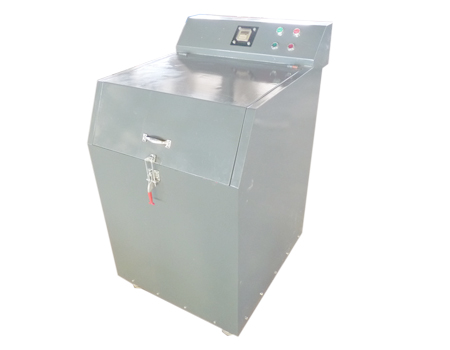

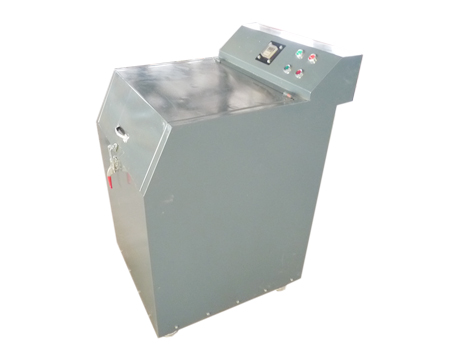

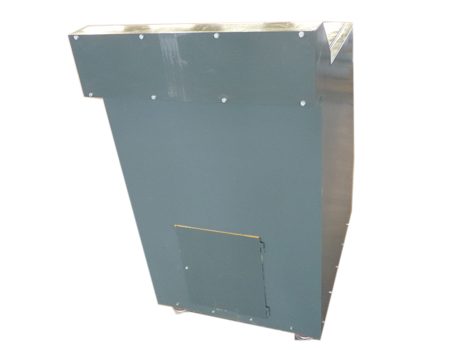

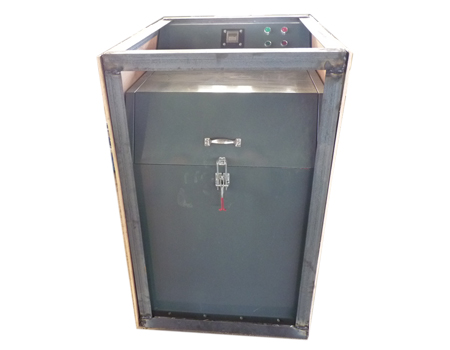

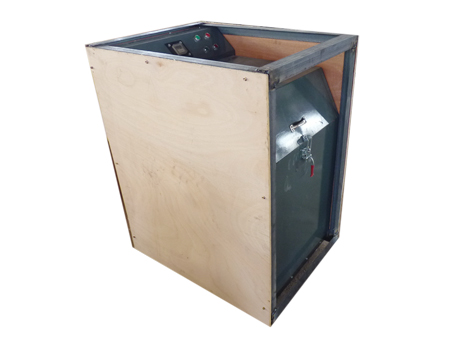

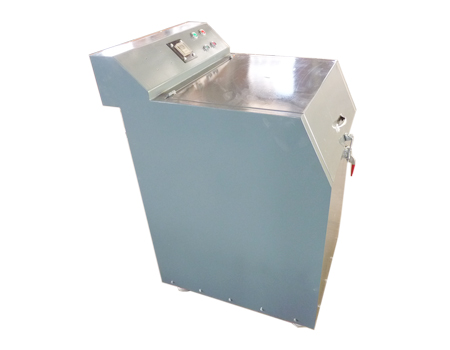

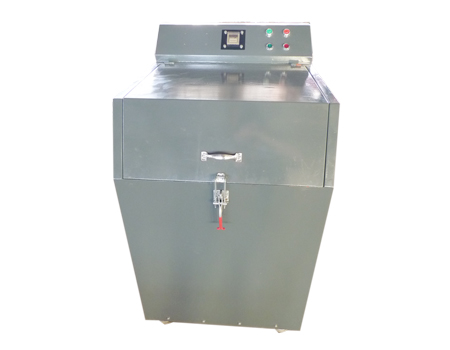

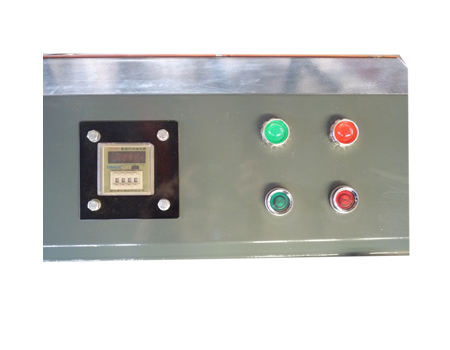

General Appearance
