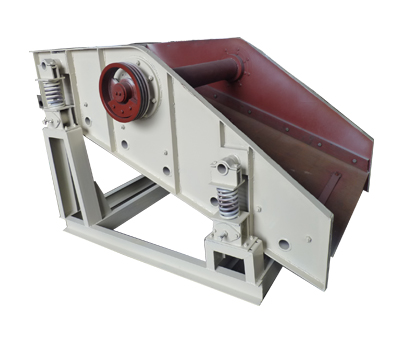

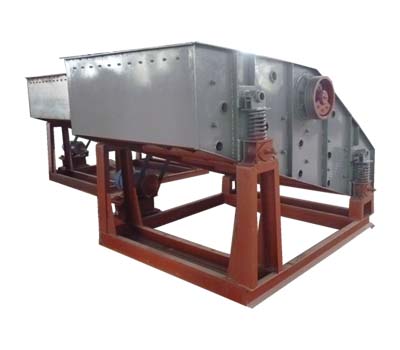

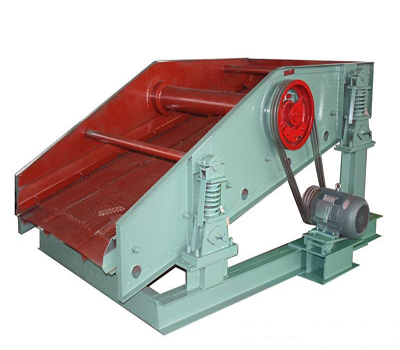

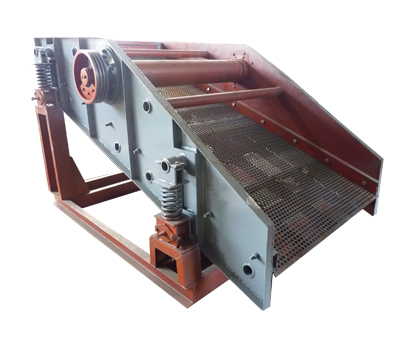

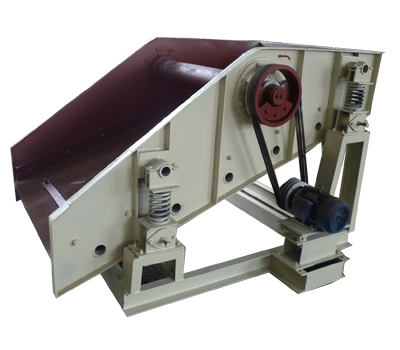

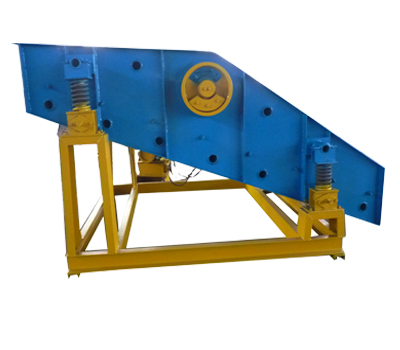

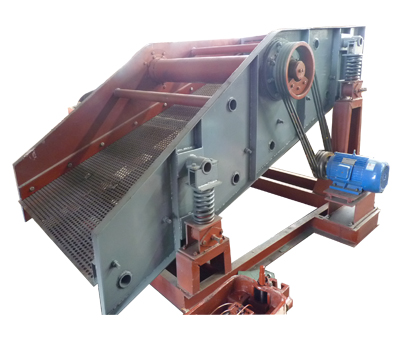

ZD Vibrating Screen
ZD Vibrating Screen
<< Adopt tire coupling and soft connection makes operation smooth
<< Simple structure
<< Be made of good material
<< Easy to repaire
<< High capacity and reliability
<< Easy maintenance
Descripition
Vibrating screen is widely applied in coal dressing, ore dressing, building material, electricity and chemical industries.
It is doing circular movement while at work, and it is of a highly-effective, newly developed and multilayer machine. With the introduction of eccentric shaft vibrating exciter and particular block, the amplitude can be adjustable.
(Note: According to different requirements of customers, our company applies vibrating screen with different specifications and vibrating modes.)
Structure
1.Frame 2. Spring 3. Motor 4. Screen body 5.Discharge port 6. Vibrating exciter
Working Principle
When vibrating screen works ,two motor with synchronous reverse rotation that will produces the vibrating exciter with vibrating force , making the screen body and screen with longitudinal motion ,thereby the material upper on the screen will have exciting force and move forward a range, to achieve a complete screening working .
Technical Specification
Application
