Rock Gold Plant In Australia
Rock Gold Plant In Australia
>> The process is simple, low cost, effective for capture single coarse gold
>> Improving beneficiation indicator and overall recovery rate of gold, increase production and reduce the cost
>> We have professional engineers team to draw flowchart based on customer's gold mine site details
>> We supplied full set gold plant: vibrating feeder, jaw crusher, hammer crusher, gold concentrator, wet pan mill, sluice box and shaking table
Description

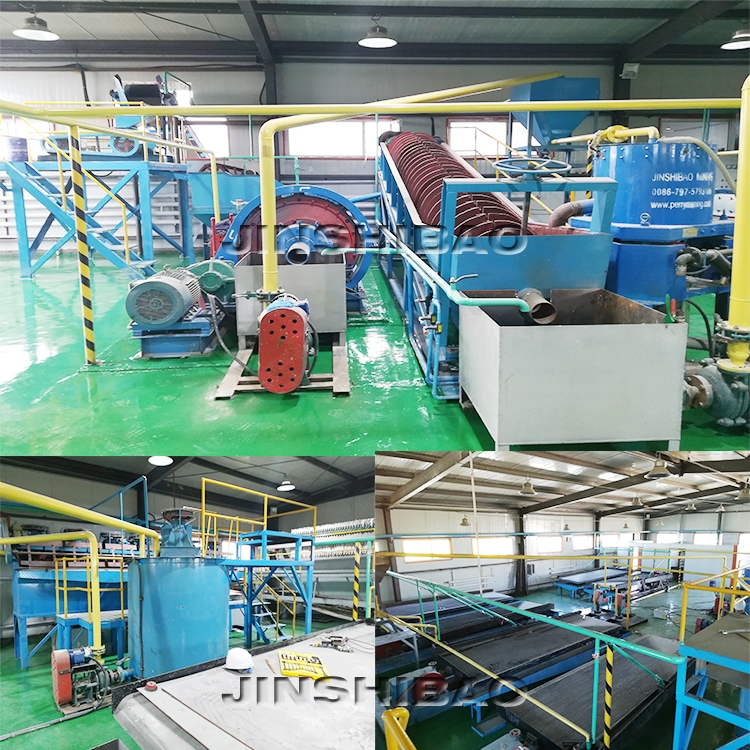

Rock Gold Plant Solution
1. Hopper+vibration feeder: raw materials will feed into the hopper by truck or excavator as you want,then the materials will feed into the jaw crusher by the vibration feeder automatically.
2. Fine ore in transit bin is sent to ball mill via electromagnetic vibrating feeder+belt conveyor. ball mill is to grind ore to powder size.
3. Discharge of ball mill goes to spiral classifier for roughly size separation. Coarse particles will be back to ball mill for further grinding;
4. Fine particles will be sent to the gold concentrator for concentrating fine gold by a slurry pump.
5.Tailings of centrifugal concentrator go to sluice box for recovering more gold;
6. Concentrates of sluice box and centrifugal concentrator are sent to shaking table for fine concentrating gold. The ball mill + classifier forms a closed-circuit grinding system, which can achieve more than 90% of the discharge to 200 mesh(0.074mm) , So this flowchart is very suitable for recovering fine powder gold in rocks.
