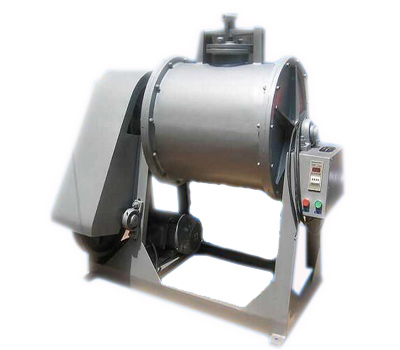

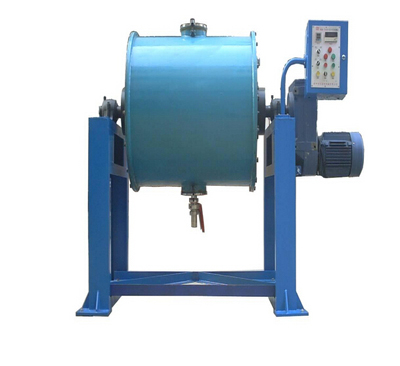

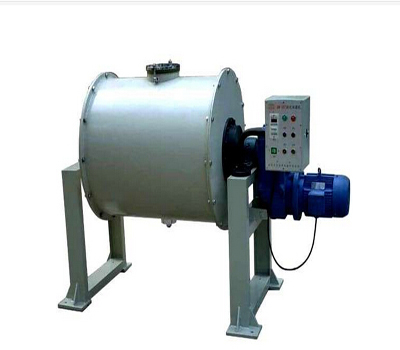

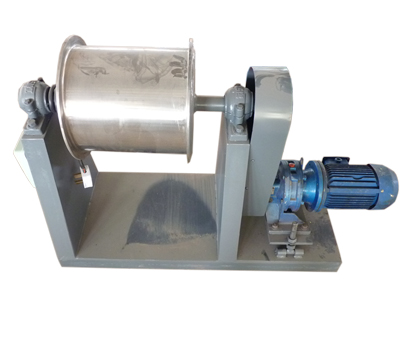

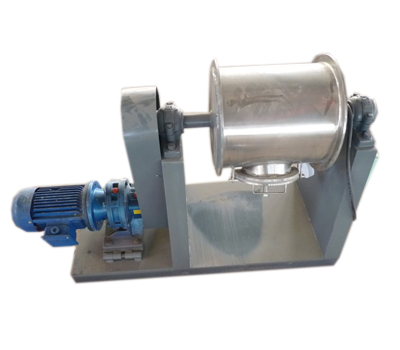

QHQM Lab Ball Mill
QHQM Lab Ball Mill
<< Reasonable structure design, convenient operation, as well as strong adaptability
<< It also can be lined with ceramic, polyurethane or PP materials
<< It can be used for material superfine grinding and mixing in chemical, abrasive, ceramic,medicine, food and other industries with jacket or without jacket
<< The ball mill with jacket can automatically discharge and separate minerals from steel balls,as well as dust proof
Description
It can be used for material superfine grinding and mixing in chemical, abrasive, ceramics, medicine, food and other industries. We always suggest the lab ball mill is used in the lab room for mining mineral grinding. Small capacity, and light weight, easy operation. Good choice on working in the lab room.
Structure

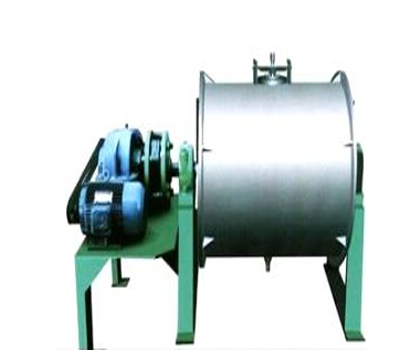

This equipment is composed of motor, reducer, cylinder body, bearing seat, belt pulley, and control box etc.
The cylinder body is filled with a number of grinding medium (zirconia balls, polyurethane balls, or bearing steel balls etc).
1. Cylinder body 2. Bearing 3. Support frame 4. Feeding port 5. Belt pulley 6. Reducer 7. Motor
Working Principle
The grinding medium and minerals are lifted up to a certain height by the rotation force of cylinder body, and then detach the cylinder wall and drop down following a parabola by the force of gravity. The minerals are crushed and mixed by friction and shear generated by rolling and sliding of grinding medium’s impacting and grinding.
Technical Specification
Model
QHQM-5
QHQM-20
QHQM-50
QHQM-100
QHQM-200
Cylinder volume (liter)
5
20
50
100
200
Unit capacity (kg)
1
5
12
25
50
Motor (kw)
0.75
1.1
1.5
2.2
3.0
Dimension (mm)
900*400*730
1140*450*880
1500*500*1100
1800*600*1300
2060*800*1400
Weight (kg)
135
225
490
630
725
Feeding size (mm)
≤5
≤5
≤5
≤6
≤6
Discharging size for
dry grinding(mm)
≤0.025
≤0.025
≤0.025
≤0.025
≤0.025
Discharging size for
wet grinding (mm)
≤0.020
≤0.020
≤0.020
≤0.020
≤0.020
Application
