39L Flotation Cell
39L Flotation Cell
>>Simple structure & easy maintenance
>>Low energy consumption
>>Large air-absorption capacity
Description
39 Liters flotation machine is applied to the Float-free method labs to separate and pre- produce half experimental in the concentrating plant.
It can be single grooved and many groove combined to continuity flotation machine.
The number of groove must be from 2 to 10 grooves, it can be left-type or right –type flotation machines as the customer required .

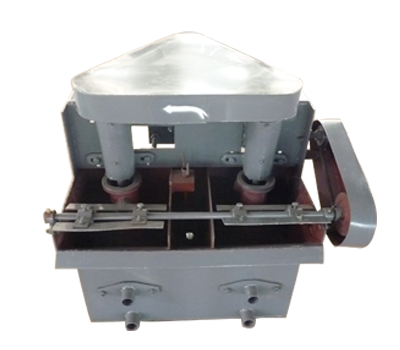

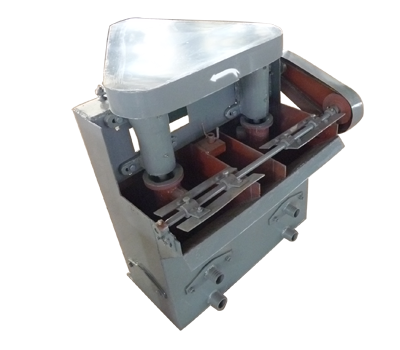

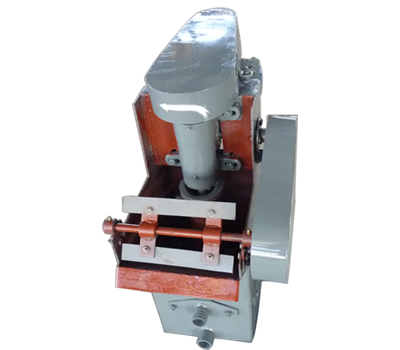

Single grooved Double grooved
Structure
1.Main motor 2.Scraper motor 3.Tank 4.Bearing pedestal 5.Scraper 6.Feeding port 7.Tailing discharging port
Technical specification
|
Model |
Single grooved |
Double grooved |
|
The effective volume(Liters) |
39 liter |
39 liter |
|
Impeller diameter(mm) |
Ф 200 |
Ф 200 |
|
Impeller rotating speed(r/min)Ⅰ |
809 |
809 |
|
Scraper rpmⅠ |
21 (big scraper) |
21 (big scraper) |
|
Scraper rpmⅡ |
13 (small scraper) |
13 (small scraper) |
|
Motor power(kw) |
1.5 |
1.5 |
|
Overall dimension(mm) |
766*930*760 |
1081*930*760 |
|
Total weight (kg) |
200 |
280 |
