Mercury Distill Retort

Mercury Distill Retort is widely used in small gold mining plant for evaporation the Hg from the Hg+ gold mixture, and refining
the pure gold.

Description

Mercury Distill Retort is widely used in small gold mining plant for evaporation the Hg from the Hg+ gold mixture, and refining
the pure gold.

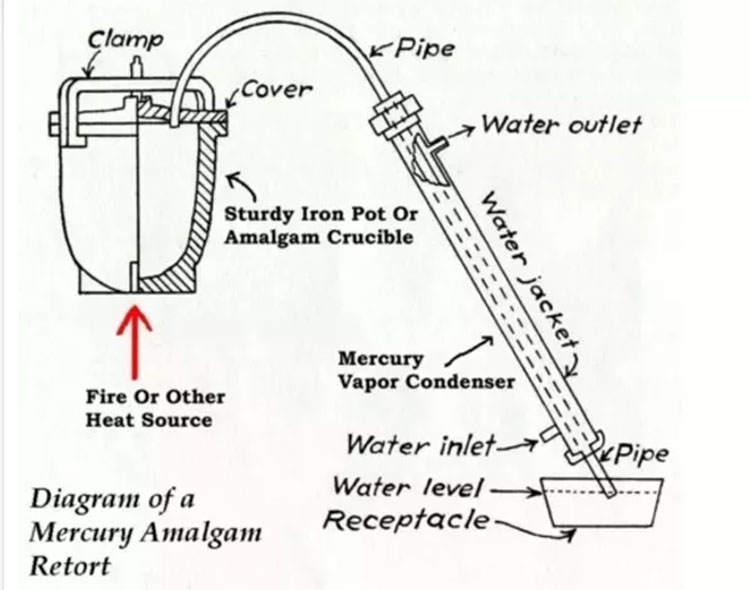

Operation principle

1. Put the Mercury Distill Retort mix with gold into the sealed cast iron tins. There is a condenser tube connected with the top of the iron can.
2. Heat the steel can on the Coke, gas or electric furnace
3. When the temperature reached 356°C, the amalgam will gasification, the mercury gas will run out through the stainless steel tube
4. The gas mercury will become Spherical droplets after go through the condenser tube, and then you can recycle the mercury.
5. In order to separate the mercury completely, gold mining plant usually maintained the temperature on 400-450°C. And in the last 30 minutes, raised the temperature to 750-800°C.
6. Distill the mercury for around 5-6hours, the gold recovery rate can reach 99%.

Note: In the whole process of mercury evaporation, the operator must wear a mask to avoid damage to the human body.

Specification

Weight	6kg
Warranty of core components	6 months
Usage	Separate gold from mercury
Material	stainless steel
Capacity	10-15kg/time
