Small Scale Gold Trommel

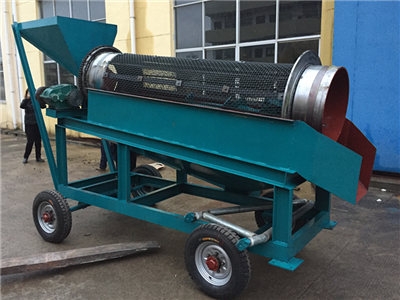

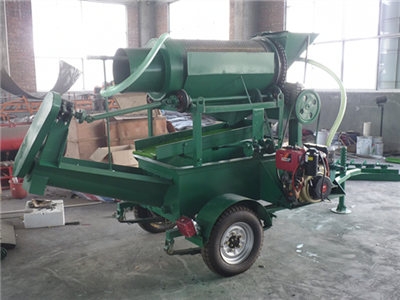

Portable Gold Trommel
CLICK HERE TO WATCH THE VIDEO ON YOUTUBE

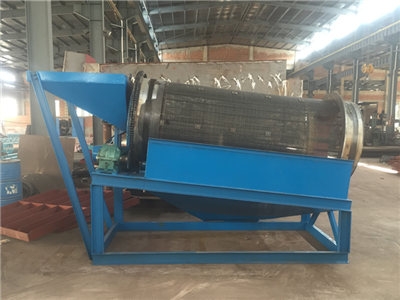

>> Both stationary and mobile type available
>> Both diesel engine and motor engine available
>> Light
>> Suitable for washing and screening various kinds of minerals, sands, and other materials
Description
Suitable for small miners
>> 1-5t/h

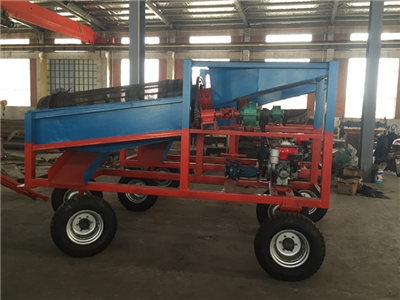

>> With wheels
Available:
>> With water pump
>> With Water storage tank
>> De-watering screw
>> Oscillating sluice
>> Diesel engine
>> Lifting lugs
>> Lighting
Structure
The trommel screen is consist of mainly 6 parts which are cylinder, main frame, discharging devices, reducer, electric motor / diesel engine, and flushing water device.
1. Feeding chute 2. Screen trommel 3. Motor/Diesel engine 4. Uppersize discharging outlet
5. Bottomsize discharging outlet 6. Water pump 7. Flushing water pipe
Working Principle
By using the mechanical design, GT trommel screen provides the efficient screening area by placing a number of grating bars side by side in which way the screening holes are formed.
The screening is completed using the materials' self-weight while rotating. The three coupling shafts are designed higher than the screening surface, which enables the larger particles being stirred up and thus increases the screening efficiency. The particles larger than screen mesh size are discharged as the uppersize materials which could be delivered away by belt conveyor, while the particles smaller than screen mesh are discharged as undersize materials which could be fed into the following equipment.
|
|
