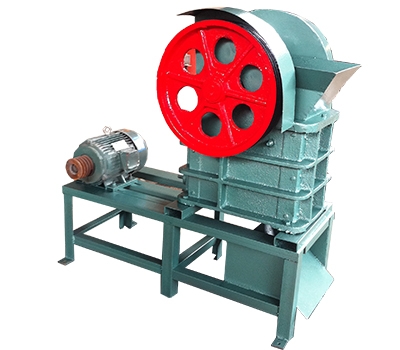

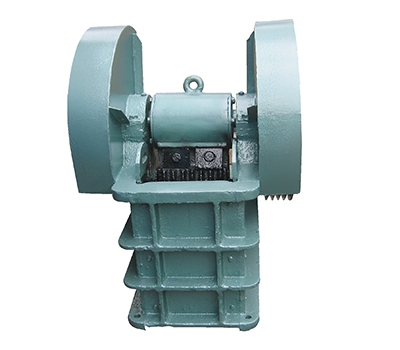

Lab Jaw Crusher
Jaw Crusher
<< to medium and fine materials
<< Reliable working condition
Description
This Lab PE jaw crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The Gold Mining Crusher is widely used in mining, metallurgical industry, building material, highway, railway, and chemical industry.
Structure
Working Principle
Motor drives V-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. Moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process. The moving jaw moves periodically according to the eccentric shaft movement, and the materials entering the crushing chamber are crushed and discharged continually.
Technical Specification
|
Type |
Max. |
Discharge |
Capacity |
Motor |
|
Dimensions |
Total |
|
PE100*60 |
50 |
6-10 |
230-400 |
1.5 |
|
950*470*520 |
110 |
|
PEF100*60 |
50 |
0.1-15.1 |
43-550 |
2.2 |
|
1100*450*780 |
182 |
|
PEF100*100 |
80 |
3~25 |
400-1800 |
3 |
|
1150*450*860 |
240 |
|
PEF125*100 |
80 |
5-25 |
400~1800 |
3 |
|
1150*450*860 |
240 |
|
PE150*100 |
90 |
6-38 |
400-3000 |
3 |
|
1150*480*860 |
270 |
