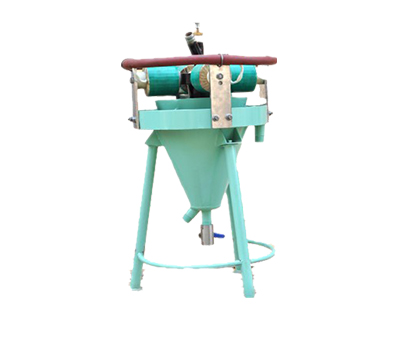

XCTS Magnetic Dewatering Tank
XCTS Magnetic Dewatering Tank
>> Fast warming
>> Simple structure & Lower cost
>> High temperature
>> Uniform heating
>> Power conservation
Description
Magnetic Dewatering Tank is a lab mineral processing facility by use of differences of specific gravity of minerals and
weak magnetism and hindered settling action, allowing separation of iron bearing mineral from gangue and desliming
and concentration of minerials. The product is made by the only manufacturer designated by the former Ministry of
Geology and Mineral Resources, in compliance with the Industrial standards.
Technical Specification
Model
Unit
XCTS-300
Tank diameter
mm
300
Feeding size
mm
0-0.5
Feeding capacity
mt
< 80
Wire power
kg/h
100-200
Coil quantity
V
150
Totally coil quantity
pcs
4
Dimension
mm
540*540*830
Weight
kg
80
Application
Contact Us
|
Contact Name |
Shelly Huang |
|
|
shakingtable@shakingtable.com.cn |
|
Skype |
jxscjsb |
|
Website |
www.perrymining.com |
|
Mobile |
008615970857791 |
