Electric Resistance Furnace

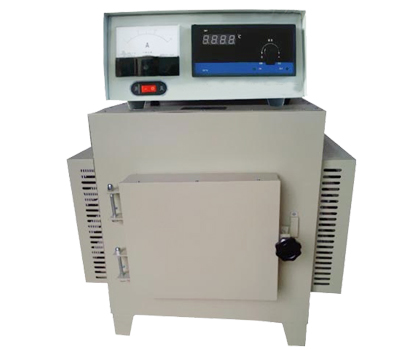

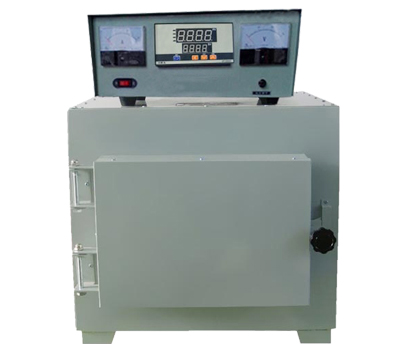

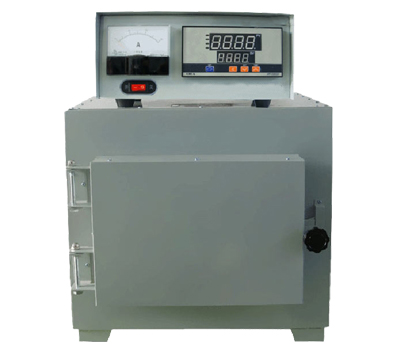

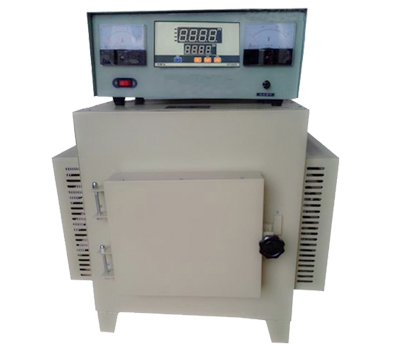

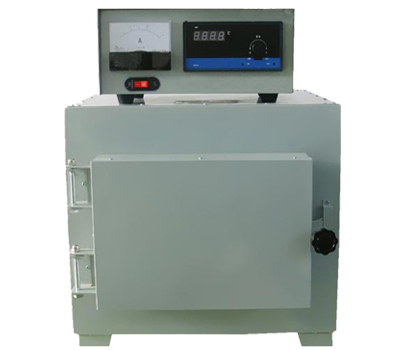

Box Type Electric Resistance Furnace / Muffle Furnace
>> For laboratory or institutions
>> Be able to reach 1300℃ for high temperature type furnace
>> With high quality elema applicable to 1300℃ furnace
>> Intelligent digital display instrument, accurate temperature control
>> Fuselage corrosion resistance, beautiful, easy, and durable
Description
All resistance furnace of this series are batch type furnace. They are used for elemental analysis and quenching, annealing, tempering and normalizing heat treatment of general small steel parts in laboratory, industrial and mining enterprises, scientific research units. High temperature box resistance furnace with rated temperature of 1300 centigrade degrees can be used in high-temperature hearing for heating treat of alloy steel and agglomeration, melting and analysis of metals.
The furnace needs to be used with KSY type or zk-3 temperature controller and platinum rhodium - platinum thermocouple, to finish the measurement, indication and automatic control of electric furnace temperature.
Structure
This series of resistance furnace shell is made of thin steel plate.The furnace is made of a box with a high alumina refractory material.The heating element - the silicon carbon rod is inserted inside the furnace, with a protective cover on both sides to ensure that the safe SX2-6/10-13 furnace bottom is equipped with detachable carbon silicon furnace bottom plate for easy maintenance and replacement.The lining of the furnace and the furnace shell are made of aluminum silicate fiber felt and high aluminum foam brick.
The door of furnace is fixed on the electric stove panel through the long arm of a multi-stage hinge.It turns flexibly.When closed, press or push the door hook, and the door can be pressed against the throat.When open, just move up or slightly handle, decoupling, place the furnace door on the side.
Technical Specifications
|
Model |
Power (kw) |
Voltage (V) |
Rated temperature (℃)
|
Hearth size (mm) |
Dimension (mm) |
Weight (kg) |
|
SRJX2-9 |
2 |
220 |
950 |
250*100*75 |
580*406*480 |
50 |
|
SRJX3-9 |
3 |
220 |
275*150*100 |
710*460*535 |
65 |
|
|
SRJX4-9 |
4 |
220 |
325*200*125 |
705*460*535 |
70 |
|
|
SRJX12-9 |
12 |
380 |
500*300*200 |
940*650*730 |
180 |
|
|
SRJX4-13 |
4 |
220 |
1300 |
250*150*100 |
600*500*500 |
55 |
|
SRJX8-13 |
8 |
380 |
500*200*180 |
800*600*550 |
280 |
|
|
SX2-2.5-10 |
2.5 |
220 |
1000 |
200*120*80 |
625*445*530 |
45 |
|
SX2-4-10 |
4 |
220 |
300*200*120 |
735*495*480 |
53 |
|
|
SX2-8-10 |
8 |
220/380 |
400*250*160 |
930*580*625 |
115 |
|
|
SX2-12-10 |
12 |
220/380 |
500*300*200 |
940*650*730 |
180 |
|
|
SX2-2.5-12 |
2.5 |
220 |
1200 |
200*120*80 |
625*445*530 |
35 |
|
SX2-5-12 |
5 |
220 |
300*200*120 |
630*495*500 |
55 |
|
|
SX2-10-12 |
10 |
380 |
400*250*160 |
930*500*625 |
115 |
|
|
SX2-6-13 |
6 |
380 |
1300 |
250*150*100 |
625*604*600 |
90 |
|
SX2-4-13A |
6 |
220 |
250*150*100 |
625*604*600 |
90 |
|
|
SX2-10-13 |
10 |
380 |
400*200*160 |
762*660*675 |
135 |
