Disc Vacuum Filter
Disc Vacuum Filter
>> Simple structure & Lower cost
>> Continuous feeding and discharging allowed
>> Suitable for small miners operation
>> Easy dehydration and solid-liquid separation
Description
Disc vacuum filter is a latest lab filter device equipment with both intermittent and continuous working function. It is application to labs involving minerals separation, metallurgy, geology, chemical industry, building materials, oil, paper making grand artificial crystal and to the dehydration and solid-liquid separation.
Structure

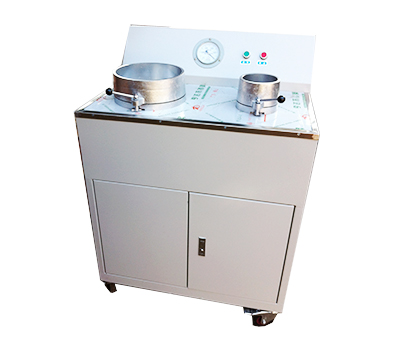

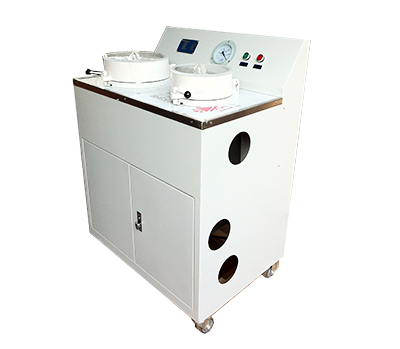

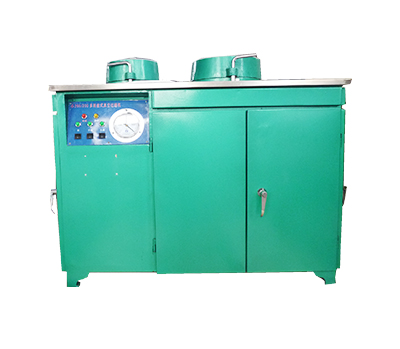

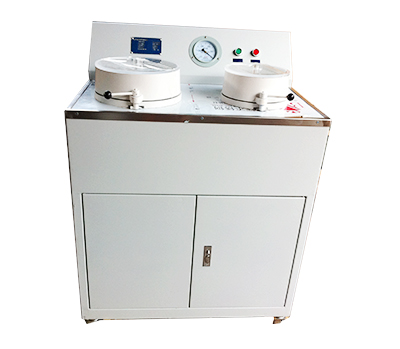

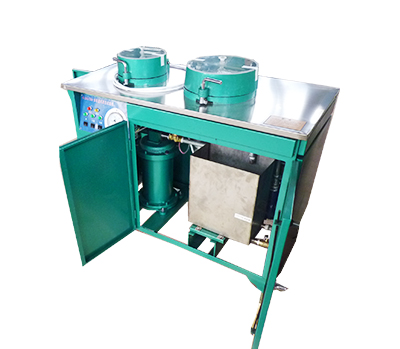

Disc vacuum filter mainly comprises vacuum pump, moisture air filter, vacuum negative pressure tank and two filter trays with automatic drainage device to be provided to separate solids from liquids. Two different filter disk with different capacity fit on the chassis, different amount slurry can be poured into the disks to filtering directly. The suck is active, located on the side of the chassis, connect by a hose to the chassis, it's use for the slurry precipitation extracting.
Technical Specification
large-size disk: 260mm
small-size disk: 200mm
large-size disk: 240mm
small-size disk: 120mm
large-size capacity: 4.2 liters
small-size capacity: 2.5 liters
large-size capacity: 3.6 liters
small-size capacity: 0.64 liters
large-size disk <500 grams, small-size disk <100 grams
Model
ZL-260/200
DL-5C
Filter disk diameter
Filter disk capacity
Pulp density
10%-30%
Slurry particle size
≤0.5mm
Filtering sample weight
Filtering time
5-10 minutes for normal materials
Power consumption
1.5kw
Overall dimensions
800*580*1140mm
Net weight
110kg
Application
