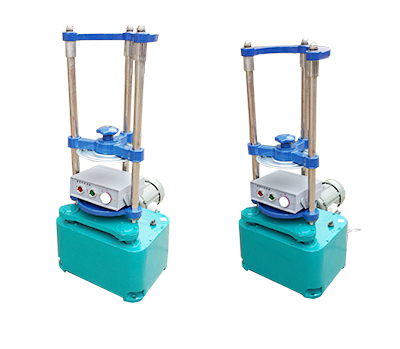

Lab Vibrating Sieve Shaker
Lab Vibrating Sieve Shaker
>> Unique structure, good swing and vibrating force
>> Auto stops setting, compact design, easy operating
>> Automaticly control vibrating sieving time.
>> Digital time display
Description
The vibrating test sieve is applicable to tests in areas such as geology, metallurgy, chemical industry,coal, national defense, scientific research, grinding wheel, cement and construction as well as to the sieving and analysis of materials in labs.
Structure

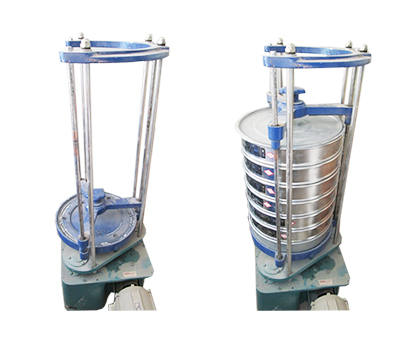

The vibrating test sieve main structure includes body frame, upper cap, swing part, vibrating part, holding part and sieve set.
Working principle
The vibrating test sieve electric motor driving the eccentric shafts, which give the sieve set a circular swing movement; at the same time, the electric motor drive eccentric cam and push rod, which will make sieve set an upward and downward movement, so as to achieve a swing and vibration result, and screening the materials effectively.
Technical Specification

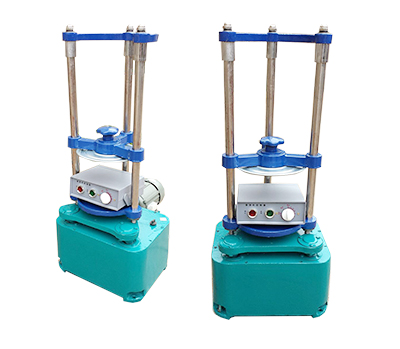

XSZ-200 Top- vibrating test sieve model
| Model |
Sieve diameter mm |
Shaking times t/min |
Vibrating times t/min |
Time scope min |
Motor power kw |
Back radius mm |
Stack height mm |
Dimension size mm |
Weight kg |
| XSZ-200 | 200 | 221 | 147 | 0-60 | 0.37 | 12.5 | 400 | 580*380*880 | 100 |

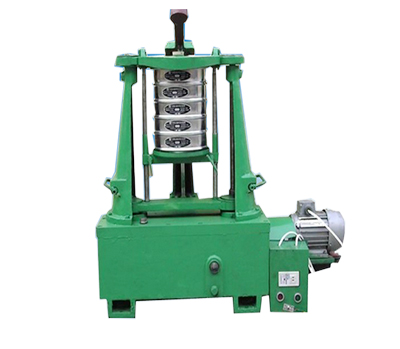

XSBP-A vibrating test sieve model
| Model |
Diameter mm |
Shaking times min |
Hammering times min |
Panting distance mm |
Motor power kw |
Voltage V |
Dimension size mm |
Weight kg |
| XSBP-A | 200 | 290 | 156 | 30±6 | 0.37 | 380 | 933*430*785 | 200 |
Application
