Lab Continuous Flotation Machine

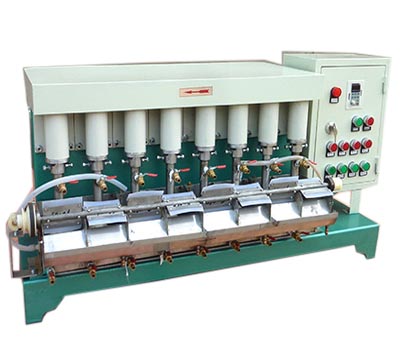

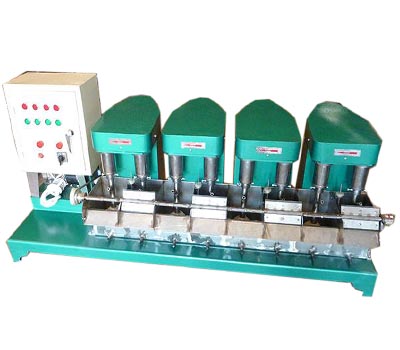

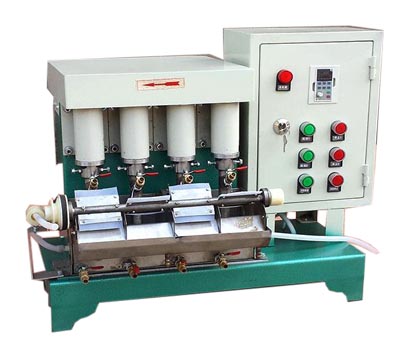

FX series Mechanical Stirring Continuous Flotation Machine
>> Helpful for laboratory flotation testing or ore sample flotation testing
>> 12 cells or customized cell number
>> Unit cell volume is 3 litres
>> Left type or right type as request
Description
The FX series Mechanical stirring type continuous flotation machine is suitable for mineral sorting by flotation method in laboratory. This flotation machine takes two cells as a working unit, which can be used for six-unit or four-unit consecutive flotation experiments, each operating unit is marched single cell or double cell. According to customized requirements, it can be adjusted to the left or right type flotation machine.
Technical Specification
|
Specification |
Norms |
Unit |
|
YS7114 |
||
|
Effective volume per cell |
3 |
L |
|
Cell amount |
8, 12 |
cell |
|
Impeller dia. |
Φ70 |
mm |
|
Impeller speed |
1680 |
rpm |
|
Scraper speed |
15,30 |
rpm |
|
Feeding size |
<0.2 |
mm |
|
Main motor power |
250W per cell |
W |
|
Scraper motor power |
25 |
W |
|
Dimension |
1200×510×600 |
mm |
Package
The lab flotation machine is packed in the plywood box which is suitable for exporting to each country.
