Triple Grinding Miller

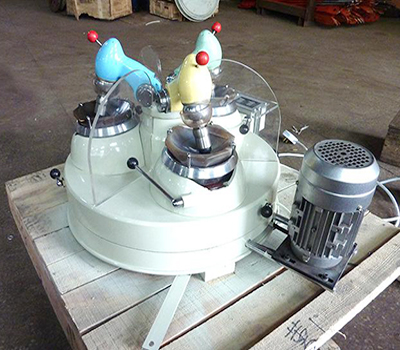

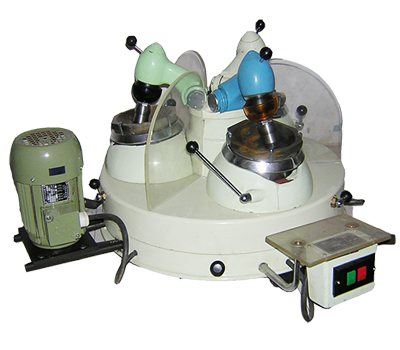

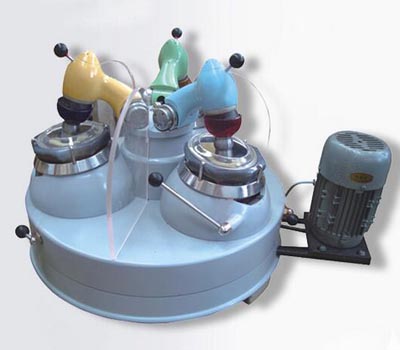

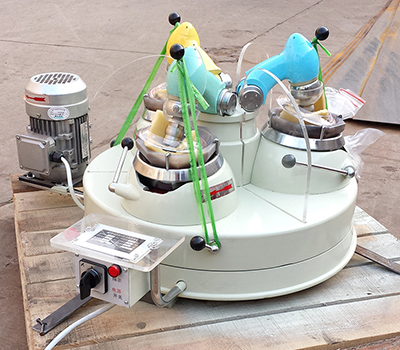

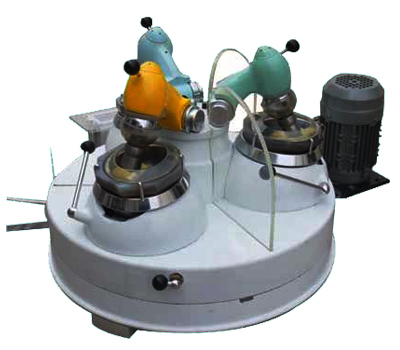

XPM Triple Grinding Miller
>> Used for laboratory levigation and analysis of ore samples
>> Bowl diameter: 120mm
>> Bowl quantity: 3 bowls per set
>> Dry type grinding condition
Description
XPM-Φ120×3 triple grinding miller is a kind of grinding equipment which mill and analyze samples through dry grinding. Such mills are mainly used to mill and analyze samples by laboratories in departments such as metallurgy, building material, chemical, coal, water and electricity, commercial inspection, and geology. They are also used to grind a small quantity of materials.
Working Principle
It's mainly composed of three sets of grinding heads, clutch, mortar support, localizer, etc.
Grinding head, mortar support and clutch are evenly installed on the rotating seat and in the bearing of rotating seat, at an angle of 120° between each two of them. On the front of the base are mounted receiving support plate and electrical equipment; on its left is installed a motor. When the clutches are connected, the motor drives the rotation of the grinding head through the belt pulley, gear shaft, and cardan joint. The other end of gear shaft and the gear of mortar supportengage. Since relative sliding occurs due to clockwise rotation of grinding bar and clockwise rotation of mortar, the materials are grinded through the weight of grinding head.
Technical Specification
| Model | Unit | XPM-120×3 |
| Diameter of mortar | mm | Φ120 |
| Amount of grinder mortar | pcs | 3 |
| Rotary Speed of pestle | r/min | 220 |
| Rotary Speed of mortar | r/min | 9 |
| Feeding size | mm | -1.5 |
| Discharging size | mm | -0.074 |
| Capacity of each bowl | g | 30 |
| Power | w | 370 |
| Overall dimension | mm | 750*700*480 |
| Weight | kg | 105 |
Package
The triple grinding miller is usually packed in the plywood box for export. So it's unnecessary to worry about the import of timber problems for some countries.
