Aluminum Table

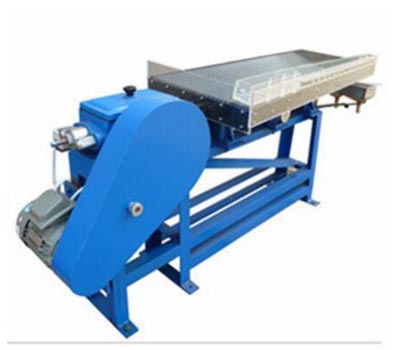

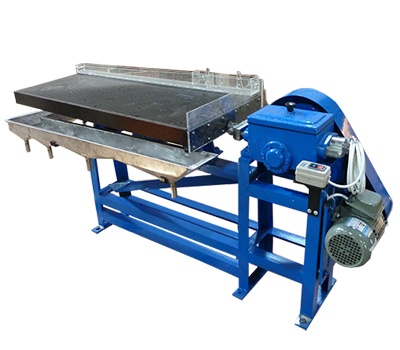

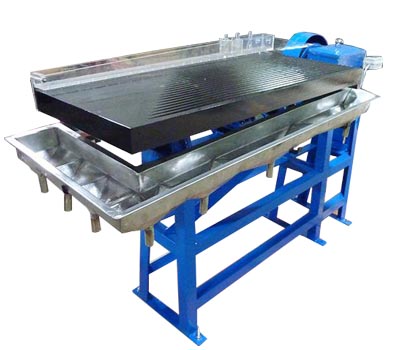

L-1100 Aluminum Deck Shaking Table
>> A gravity beneficiation equipment
>> Used for lab testing or small scale separation
>> Aluminum deck
>> Motor power: 0.55kw
Description
As one of the gravity mineral separation equipment, the shaking table is easy to be operated and can produce high grade concentrates, secondary concentrats, middlings and tailings at the same time. It is widely used to separate gold, copper, tungsten, tin, chrome, and other ferrous and nonferrous, rare metals and precious metals.
It's commonly-taken gravity beneficiation equipment for optionality lab research, test, and small-sized process line. Minerals could be separated according to the different specific gravity and asymmetric movement on the deck. There are clear mineral zones during operation.
Technical Specification
| Model | L-1100 |
| Deck size | 1100*500*430mm |
| Stroke | 9-17mm |
| Frequency | 280-460rpm |
| Deck adjustable angle range | 0-10 degree |
| Feeding size | -0.074mm (sime deck) |
| -2mm (sand deck) | |
| Feeding density | 10-30% |
| Capacity | 20-60kg/h (sime deck) |
| 40-100kg/h (sand deck) | |
| Water consumption | 2-10L/min |
| Motor power | 0.55kw |
| Dimension | 1730*500*800mm |
