Lab Rotary Kiln of SHY Series
Lab Rotary Kiln
>> Rotating furnace tube
>> Simple structure & Lower cost
>> Continuous feeding and discharging allowed
>> Suitable for small miners operation
>> Furnace tube sealed
Description
Lab rotary kiln is applicable to areas such as metallurgy,geology,mine,chemical industry and building materials.With continuous feed and discharge allowed.It is able to dispose materials in large amount.
Structure

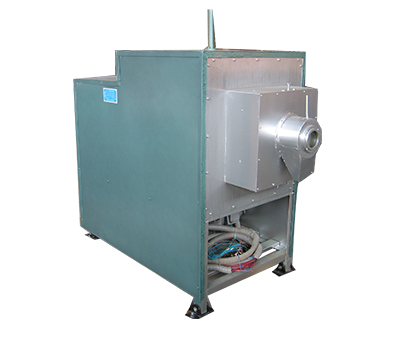

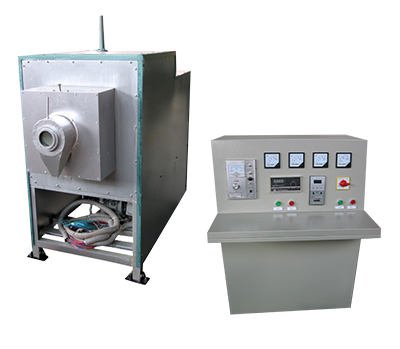

It consists of two parts: part one kiln body; part two electric control boxes. The kiln body is divided into two sections of electrical furnace body and dynamic rotation with the kiln body constructed of clayed circular hearth uniformly inserted with 9 silicon carbon rods along the circular axis (one group made up of 3 rods and Y connection for every 3 groups). High aluminum ceramic furnace tube is installed in the silicon carbon rod. After being energized, the silicon carbon rod will generate high temperature to heat the furnace tube.
Technical Specification
Model
SHY-I
SHY-II
Rated max temperature ℃
1300
1600
Rotary speed r/min
0-3.3
0-5
Dip angle ℃
0-10
0-10
Furnace tube size mm
92/100*1200
90*1000
Furnace Power kw
24
6
Rated motor power kw
0.6
0.6
Weight kg
160
700
Dimension size mm
1730*800*1550
1270*470*1350
Feeding size mm
5-15
5-15
Application
