Work Index Ball Mill

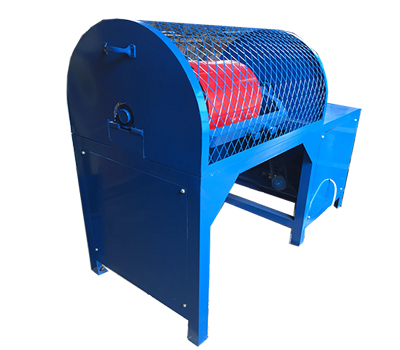

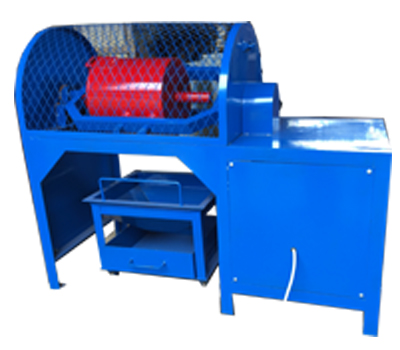

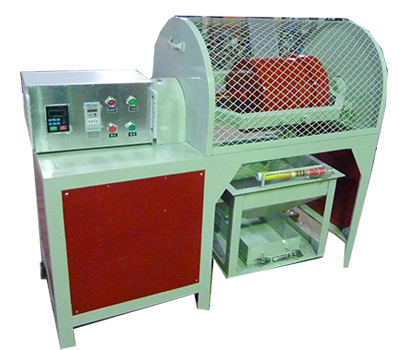

XMGB Work Index Ball Mill
>> Used to determine the work index of grinding of ores
>> For lab testing or small scale grinding
>> Low price but fast delivery
>> High quality & Stable performance
>> Two model sizes available
Description
XMGQ work index ball mill is specially and mainly used to determine the work index of grinding of ores, slag, and other materials. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the industrial standards.
Same as other ball mills, it requires to add the materials and regulated steel balls into the drum for dry grinding. Then repeat to screen and weigh the products so as to work out the grinding work index (kwh/h).
Technical Specification
| Model | Unit | XMGQΦ305×305 | XMGQΦ305×610 | |
| Drum size | mm | Φ305×305 | Φ305×610 | |
| Drum speed | r/min | 70±0.5 | 46±0.5 | |
| Power | kw | 0.75 | 1.1 | |
| Ball load | kg | 20.568 | 33.38 | |
| Dia. | Qty | Qty | ||
| Steel ball | Φ38 | pcs | 25 | 45 |
| Φ32 | pcs | 39 | 70 | |
| Φ25 | pcs | 60 | 100 | |
| Φ22 | pcs | 68 | 120 | |
| Φ19 | pcs | 93 | 170 | |
| Feeding size | mm | ≤3.2 | ≤12.7 | |
| Volume | cm³ | 700 | 1250 | |
| Dimension | mm | 1500×630×1100 | 930×610×1185 | |
| Weight | kg | 330 | 400 | |
