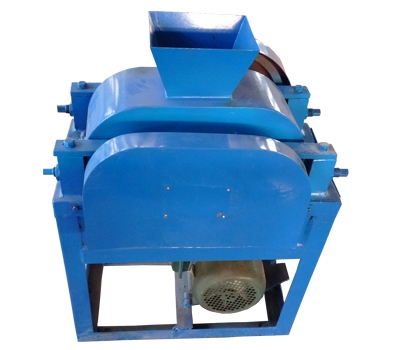

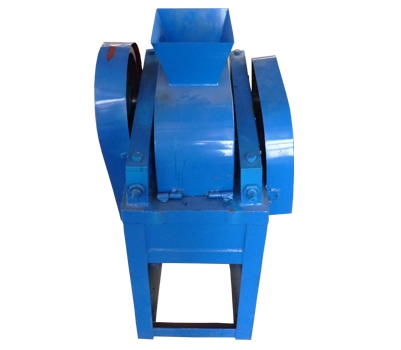

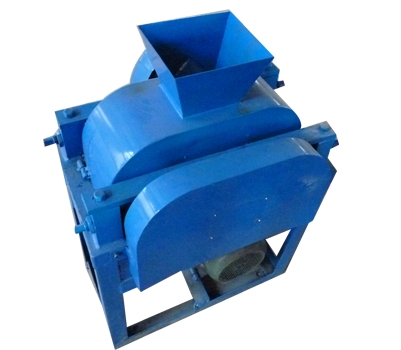

Lab Roll Crusher
Lab Roll Crusher
>> High durable rollers, longer service life.
>> Fine output size and no blocking for the roller.
>> Stable working performance, easy to maintenance and inspection.
>> Eco-friendly design, and easy to clean.
>> High capacity, lower power consumption.
>> Can work normally without fixing any base.
>> Full sealed, environmental friendly.
>> Provides a better work environment than jaw or impact style crushers. High efficiency crushing performance.
Description of laboratory roll crusher
Laboratory Roll crusher is mainly used for making the sample of the medium hard materals. It's suitable for the industry of coal, electric power,metallurgy,chemical industry, building material, cement,refractory and other industrial materials crushing,such as:limestone,slag,coke,coal etc.
Working Principle of laboratory roll crusher
Laboratory Roll crusher is equipped with a pair of counter-rotating rollers,materials from the hopper tangential to the middle of the two roller, the materials being broken and the squeezed broken materials into the receiving hopper at the bottom of the machine,the crushing process completed.Particle size can be adjust by adjusting the gaps between the two rollers.
Structure of laboratory roll crusher
Technical Specification of laboratory roll crusher
Model
φ200x75
φ200x125
φ200x150
Roller size（mm）
φ
200*75
φ200*125
φ200*150
Feeding size（mm）
≤10
≤10
≤10
Output size（mm）
0-4
0-4
0-4
rotate speed (r/m)
450
400
400
Capacity（kg/h）
300
500-1200
600-1500
Motor power（kw）
1.5
3
3
Dimension (mm)
600*460*880
700*500*880
700*500*880
Weight (kg)
150
155
170
