Water Pump

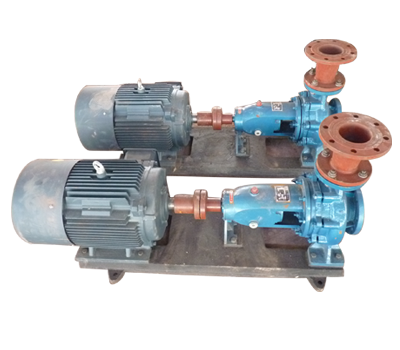

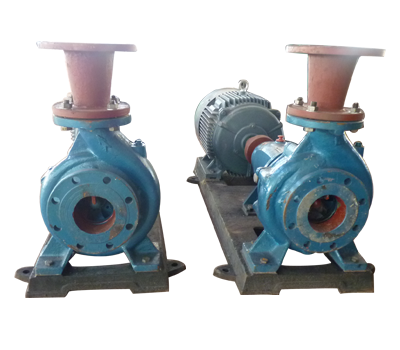

Water pump
>>Convenient operation and maintenance.
>>Simple structure, reliable performance, low power consumption.
>>Anti-cavitation performance and low power consumption.
>>High strength cast iron bearing housing.
Description
Water pumps are widely used for industrial and urban water supplying, drainaging, also for agricultural irrigation, it can delivery water or liquid that physical and chemical similar to water. Our water pumps is special designed for the mining processing industry.
Water pump with diesel engine Water pump with elec motor
Structure
1.Pump body 2.Impeller 3.Pump cover 4.Sliding bearing 5.Pump shaft 6.Labels 7.Bracket 8.Arrow plate 9.Bearing box 10.Protective hood 11.Coupling 12.Motor 13.Pedestal 14.External magnetic rotor 15.Isolation cover 16.Inner magnetic rotor 17.Shaft sleeve 18.Thrust bearing
Working Principle
The centrifugal pump works by using a rotating impeller that creates a low pressure sector at the inlet of the impeller. This area is referred to as the eye of the impeller.The low pressure sucks in the fluid around it, which is then pushed along the impeller to the casing where it collects before being pumped out through the discharge nozzle, completing the cycle.
Technical Specification
Model
Rotation speed
r/min
Flow rate
Lift
m
Efficiency
%
Power
m
M3/h
l/s
Axial
kw
Motor
kw
IS(R)50-32-125
2900
7.5
2.08
22
47
0.96
2.2
2.0
IS(R)50-32-160
2900
7.5
2.08
34.3
44
1.59
3
2.0
IS(R)50-32-200
2900
7.5
2.08
52.5
38
2.82
5.5
2.0
IS(R)65-50-125
2900
15
4.17
21.8
58
1.54
3.0
2.0
IS(R)65-50-160
2900
15
4.17
35
54
2.65
5.5
2.0
IS(R)65-50-200
2900
15
4.17
53
49
4.42
7.5
2.0
IS(R)80-50-125
2900
30
8.33
22.5
64
2.87
5.5
3.0
IS(R)80-50-160
2900
30
8.33
36
61
4.82
7.5
2.5
IS(R)80-50-200
2900
30
8.33
53
55
7.87
15
2.5
IS(R)100-80-125
2900
60
16.7
24
69
5.86
11
4.0
IS(R)100-80-160
2900
60
16.7
36
70
8.42
15
4.0
IS(R)100-65-200
2900
60
16.7
54
65
13.6
22
3.0
IS(R)125-100-200
2900
120
33.3
57.5
67
28.0
45
4.5
IS(R)125-100-315
2900
120
33.3
132.5
60
72.1
110
4.0
IS(R)-150-125-250
1450
120
33.3
22.5
71
10.4
18.5
3.0
IS(R)200-150-250
1450
240
66.7
22.6
70
21.1
37
3.6
IS(R)200-150-400
1450
240
66.7
55
74
48.6
90
3.0
Application
Our centrifugal water pump is design for delivering water or the liquid which chemical character is similar to water without particles.
It is widely applicable in industrial, agricultural drainage, special for the mining industry.
Besides, it also used for pipeline system, metallurgy,chemical industry, textile industry, woodcraft, paper-making.
