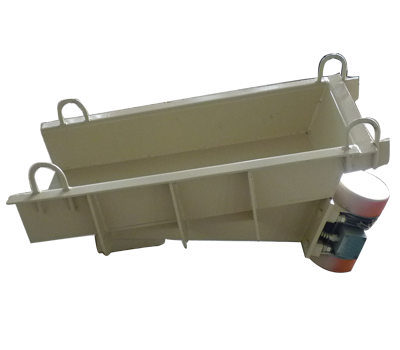

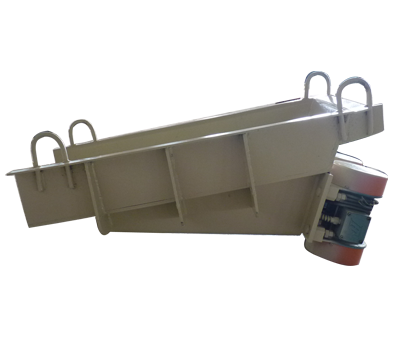

Vibrating Feeder
Vibrating Feeder
>>Small volume, light weight, simple structure, easy to assemble.
>>Continuous and feeding for crushing.
>>Small power consumption,stable operation, long service life.
>>The feeding material volume can be changed, started or stopped instantaneously.
Description
DZ Series vibrating feeder is a new type of feeding equipment. It is widely used in metallurgy, coal, chemicals, building materials, ceramics, food and other industries.
It can feed block or granule materials from the storage silo to charging device evenly and continuously, Also can be used for automatic matching, quantitative package, automatic regulating process.
Structure

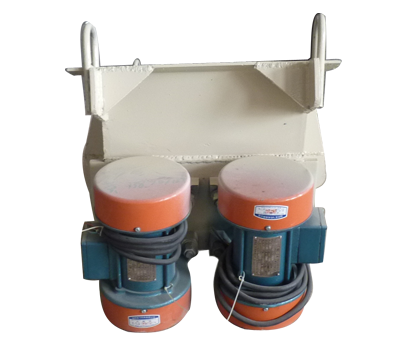

The motor vibrating feeder mainly compose of frame, vibrating motors, springs, transmission trough body, vibrating support plate, control box, etc.
Working Principle
The vibrating motors force the feeding trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the feeding trough body, which causes the forward motion and transmission of the materials.
Technical Specification
Model
Max.Capacity
(T/h)
Tank dimensions
(mm)
Max.Feeding
size (mm)
Power
(kw)
External dimensions (mm)
L0
L1
H1
B0
Z30-4
15
300*800*120
120
0.18*2
250
430
550
430
Z40-4
40
400*1000*160
0.25*2
325
550
630
550
Z50-4
50
500*1100*200
0.40*2
350
650
670
650
Z60-4
85
600*1200*250
150
0.75*2
325
770
800
770
Z70-4
100
700*1300*280
180
0.75*2
350
870
850
870
Z80-4
200
800*1600*350
200
0.75*2
475
1000
980
1000
Z90-4
220
900*1600*350
250
1.1*2
450
1100
980
1100
Z100-4
240
1000*1600*350
1.5*2
450
1210
1110
1210
Z110-4
400
1100*1800*400
350
1.5*2
450
1340
1110
1340
Z120-4
440
1200*2000*400
1.5*2
500
1440
1110
1440
Z130-4
475
1300*2200*400
1.5*2
550
1540
1110
1540
DZ70-6
80
700*1300*280
180
1.5*2
350
870
900
870
DZ80-6
160
800*1600*300
180
2.2*2
475
1000
1020
1000
DZ90-6
240
900*1600*350
240
3.0*2
450
1100
1020
1100
DZ110-6
320
1000*1600*350
3.7*2
450
1340
1180
1340
DZ130-6
400
1300*2200*400
320
3.7*2
550
1540
1230
1540
DZ150-6
500
1500*2400*400
3.7*2
600
1680
1230
1680
Application
