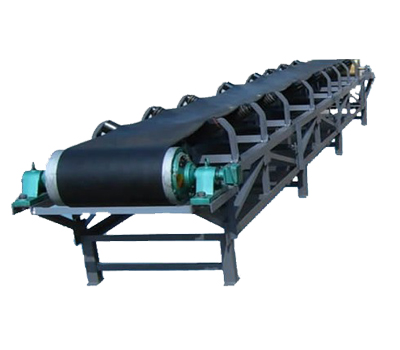

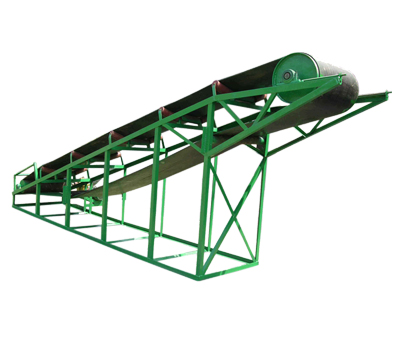

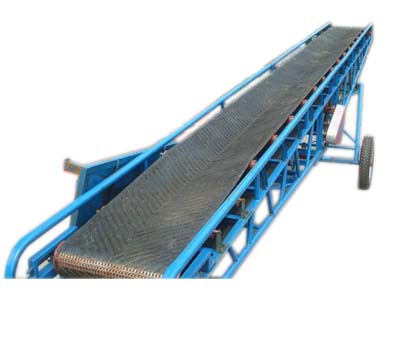

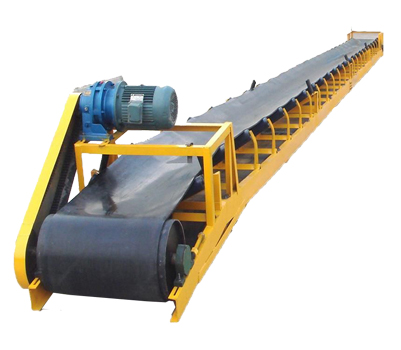

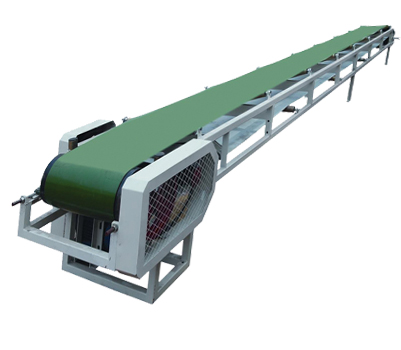

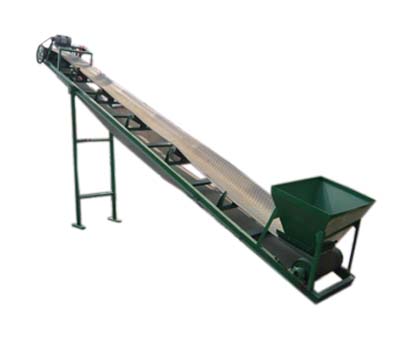

Belt Conveyor
Belt Conveyor
<< Simple structure, large transport capacity, long distance
<< Structure compact, light weight, moving convenience,
<< Reliable and easy maintenance.
Description
Belt conveyor is widely used to transport powder, granular or graininess materials in metallurgical, mining coal, building materials, chemicals, power, transportation, grain and other departments.
It is suitable for transporting coal, slag, salt, gravel, grain, ore and massive, granular and other bulk materials with bulk density between the 0.5 and 2.5 t/m3 at room temperature.
Strcuture
1. Transmission support 2. Transmission box 3. Driving roller 4. Carrier rollers 5. Belt 6. Feeding port 7. Redirection roller 8. Tighting device 9. Ending support 10. Support leg 11. Carrier rollers
Working Principle
The belt conveyor that is driven by motor or diesel , to tighten the belt , middle frame , and pull roller as traction and bearing , go on the continue working for transfer the material.
Technical Specification
|
Model |
Capacity |
Max deliver distance |
Belt width |
Speed |
Upper slope |
Power |
Drum dia. |
Roller dia. |
|
t/h |
m |
mm |
m/s |
（°） |
KW |
mm |
mm |
|
|
ZSD500 |
87 |
20 |
500 |
1 |
＜20 |
5.5 |
500 |
89 |
|
ZSD650 |
127 |
20 |
650 |
1 |
＜20 |
7.5 |
500 |
89 |
|
ZSD800 |
198 |
15 |
800 |
1 |
＜20 |
7.5 |
630 |
89 |
|
ZSD1000 |
507 |
20 |
1000 |
1.25 |
＜20 |
11 |
800 |
108 |
|
ZSD1200 |
742 |
20 |
1200 |
1.25 |
＜20 |
15 |
1000 |
108 |
|
ZSD1400 |
1032 |
30 |
1400 |
1.25 |
＜20 |
22 |
1000 |
133 |
Application
